Non-Segregated Phase Bus

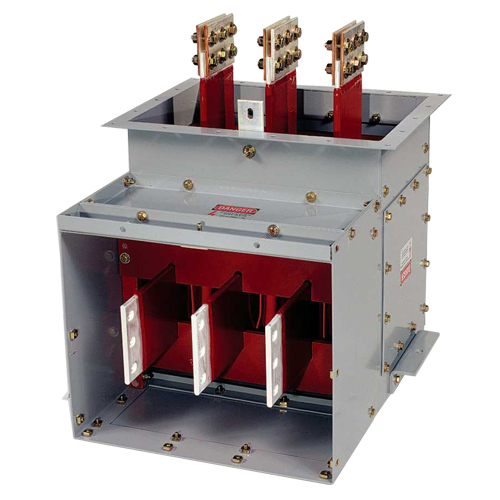

Eaton’s Non-segregated phase bus is an assembly of bus conductors with associated connections, joints, and insulating supports integrated within a single enclosure.
The solution is designed for use on circuits which importance requires greater reliability than power cables provide.
CONTINUOUS CURRENT RATING
Up to 6000 A
SYSTEM VOLTAGE RATING
Up to 38 kV
SYSTEM FREQUENCY RATING
SYSTEM FREQUENCY RATING
Up to 63 kA
Core features
- Reduce installation costs and improve reliability with a simplified design compared to cable solutions
- Achieve an exact fit the first time with Eaton’s Final Field Fit Program
- Maximize conductivity with a design that incorporates silver- or tin-plating on all joint surfaces
- Coordinates with Eaton switchgear
- Minimize the risk of problems in harsh environments with a durable, baked-on epoxy powder coat finish
Non-segregtaed busway
Learn how non-segregated busway can save space, increase energy efficiency and reliability and can save you money.
Eaton’s comprehensive portfolio
Eaton’s comprehensive portfolio of busway solutions offers endless possibilities for meeting today’s ever-changing power requirements.
Overview
Technical
Resources
Eaton’s non-segregated phase bus is an assembly of bus conductors with associated connections, joints, and insulating supports integrated within a single enclosure. The solution is designed for use on circuits which importance requires greater reliability than power cables provide.
Contact me about this product
CONTINUOUS CURRENT RATING
Up to 6000 A
SYSTEM VOLTAGE RATING
Up to 38 kV
SYSTEM FREQUENCY RATING
Up to 63 kA
Core features
- Reduce installation costs and improve reliability with a simplified design compared to cable solutions
- Achieve an exact fit the first time with Eaton’s Final Field Fit Program
- Maximize conductivity with a design that incorporates silver- or tin-plating on all joint surfaces
- Coordinates with Eaton switchgear
- Minimize the risk of problems in harsh environments with a durable, baked-on epoxy powder coat finish
Non-segregted busway
Learn how non-segregated busway can save space, increase energy efficiency and reliability and can save you money.
Eaton’s comprehensive portfolio
Eaton’s comprehensive portfolio of busway solutions offers endless possibilities for meeting today’s ever-changing power requirements.
