Description

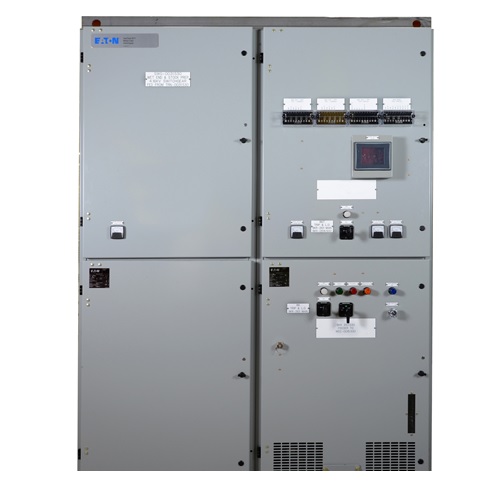

VacClad-W 5-15 kV metal-clad medium-voltage switchgear

Eaton’s VacClad-W switchgear is a metal-clad, medium voltage switchgear that can be custom-engineered to fit a wide array of application and safety requirements. This decidedly versatile 5-15 kV MV switchgear can be assembled in various combinations to meet specific usage requirements. It’s a trusted choice for applications such as control and distribution, main-main automatic transfer, main-tie-main automatic transfer, main service disconnect and switching.



Contact me about this product

• See Eaton’s medium-voltage switchgear portfolio
• Learn about medium-voltage switchgear fundamentals

VOLTAGE CLASS

up to 15 kV

CONTINUOUS CURRENT

up to 4000 A

INTERRUPT RATING

up to 63 kAIC

Core features

• Compartmentalized, metal-clad design conforming to IEEE C37.20.2 and CSA C22.2 No. 31-14

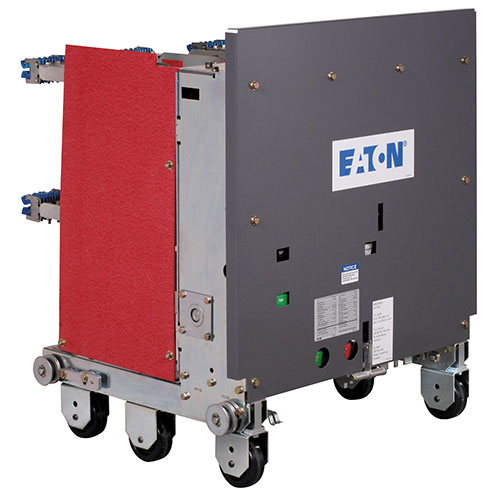

• Horizontal drawout circuit breakers and VT/CPT drawers
• Provided with mechanical interlocks for proper operating sequence
• Insulated bus conductors and connections throughout
• Protection and metering as per customer’s specifications
• Available in both indoor and outdoor configurations
• Available in low profile height configurations (80″)
• Can be supplied with UL /CSA listing

View design guide (layouts, technical data and application information)

Download guide spec (26 13 26)

Learn more about power system design basics

Image gallery

Scroll to view various images of metal-clad equipment

Previous
Next

Enhance worker safety

Remotely employ motorized racking to safely move breakers and auxiliary drawers from outside the arc flash boundary.  Learn more about MR2https://www.youtube.com/watch?v=XHOmBV4js_E
