5-15 kV Medium-voltage metal-enclosed front accessible switchgear

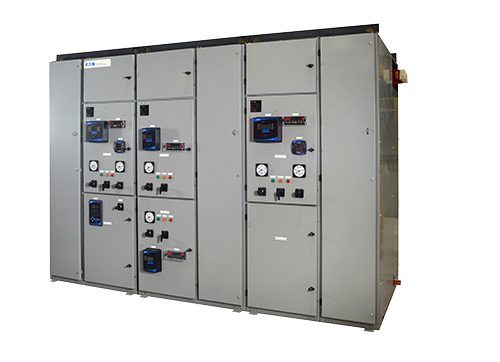

Designed for applications at voltages up to 15 kV, Eaton’s MEF is the most flexible, cost-effective and space-efficient medium voltage switchgear available. Offering convenient front access to all components and connections, the metal enclosed switchgear is available in a wide variety of configurations that can be easily scaled for expansion. Its reduced footprint not only allows for space savings of more than 50%, but can be transported using a fork truck or pallet jack, eliminating the need for a crane.

VOLTAGE CLASS

up to 15 kV

CONTINUOUS CURRENT

up to 2000 A

INTERRUPT RATING

up to 40 kAIC

Core features

Designed for applications at voltages up to 15 kV, up to 2000A continuous current and up to 40kA short circuit withstand
Convenient, front accessible design enables 5/15kV switchgear to be pushed against wall
Available in a wide variety of configurations, standard drawing packages, integrated trips units and reduced clearance installation
Integrated trip unit options eliminate need for external power source/short circuit protection
Maintenance-free bus connections save time and money
Portable design enables space savings of more than 50% and can be transported using a fork truck or pallet jack, eliminating the need for a crane
Draw out compartments and arc flash modes enhance safety
Features insulated primary bus conductors and connections

Image gallery

Easy front access to components & connections

Unlike traditional switchgear with the cable connection in the rear, the MEF’s front-accessible construction makes it easy for operators to reach all components from the front. The space-saving design can be pushed against the wall.

Eaton’s Electrical Engineering Services and Systems

With more than 1,500 experts in 60 locations throughout Canada and the U.S., and more around the world, Eaton’s Electrical Engineering Services and Systems team is one of the largest and most experienced service organizations in the industry.
