xBoard Distribution Boards
Eaton xBoard range of distribution solutions is the basis for development and growth in meeting all the demands for a successful future in residential, commercial and infrastructure segments.
COMPLIANT TO
IEC61439-3
RATED VOLTAGE
240/415 V
DEGREE OF PROTECTION
IP4x or IP42
Core features
- xBoard Distribution Board is designed as per the new standard IEC61439-3
- Easy to select, install and use

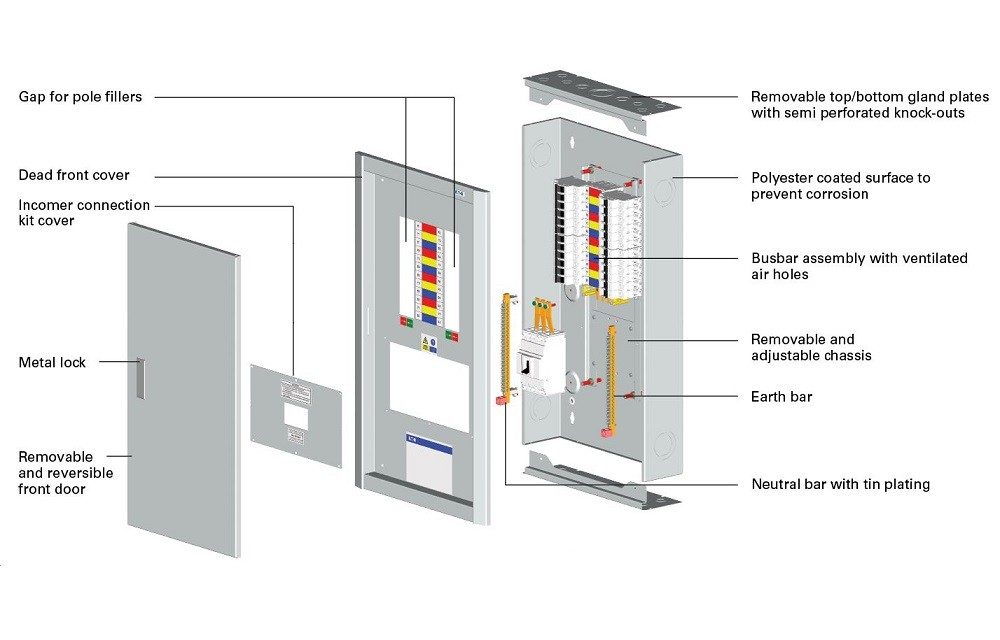

- Fitted with a removable and adjustable chassis
- The front door is removable and reversible
- For convenience and easy access the gland plates on the top and bottom are removable
- The lock is a standard metal lock, key lock provision is also available
- Standard: IEC 61439-3
- Voltage range: 3-Phase, rated voltage 240/415V, 50/60Hz
- Degree of protection: Indoor use IP4x or IP42
- Enclosure thickness: 1.25mm Solid construction
- Enclosure material: Polyester coated sheet steel enclosure
Product overview
- Available in flush and surface mounting design.
- Colour available as standard RAL 7035 and other colours are available upon request.
- lncomer options: Isolators, MCBs, RCDs, MCCBs.
- Complete with earth and neutral terminals suitable for 25mm² wire.
- Tin plated busbars are provided to enhance conductivity.
- DIN rail provided for easy placing of outgoing devices.
AD Trustmark
Our products fully comply to the highest standards and approved by ADQCC – Abu Dhabi Quality and Conformity Council
Non-split type
- Rated busbar capacity: 100A, 125A, 200A and 250A
- No. of TP (SP) ways: 4(12), 6(18), 8(24), 10(30), 12(36), 14(42) 16(48), 18(54), 20(60).
Split type
- Rated busbar capacity: 100A
- No. of TP ways: (2+2), (2+4), (2+6), (2+12), (4+2), (4+4), (4+6), (4+8), (4+10), (4+12), (6+2), (6+4), (6+6), (6+8), (6+10) (8+2), (8+4), (8+6, (8+8), (10+4), (10+6), (12+4)
