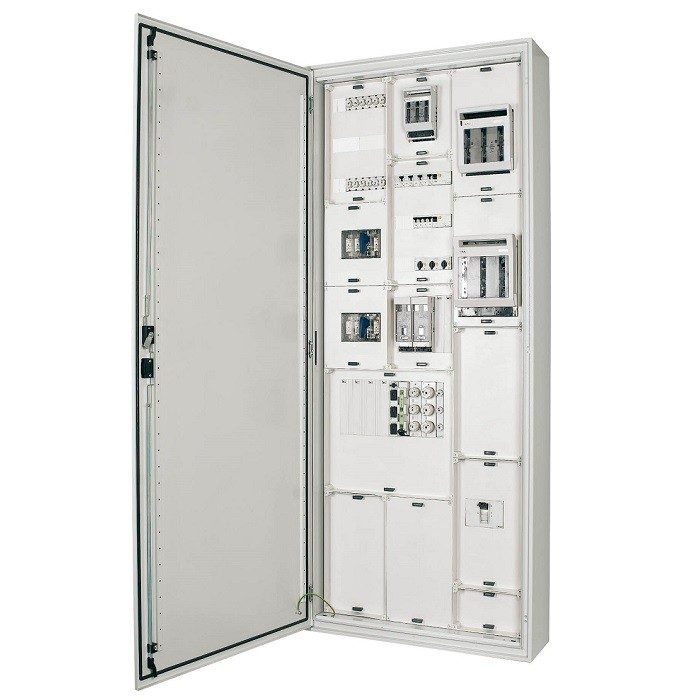

xEnergy Basic
The xEnergy Basic is a wall-mounted and floor-standing enclosure for electrical distribution up to 630 A. The smallest distribution board of our xEnergy family is the most flexible and variable system in the entire range. The diversity of different types and sizes makes the use in almost every application possible.
Thanks to its certification as low-voltage distribution board intended to be operated by ordinary persons acc. to IEC/EN 61439-1/-2/-3 as well as to IEC/EN 62208, the xEnergy Basic is the first choice for electrical distribution in residential and functional buildings.
RATING UP TO
630 A
ACCORDING TO
IEC/EN 61439
PROTECTION CLASS
I
Core features
- Standards: IEC/EN 61439-1/-2/-3, IEC 62208
- Degree of protection:
- Floor-standing IP30 (IP31) / IP55
- Surface-mounted IP30 (IP31) / IP55
- Flush-mounted IP30 / IP43 / IP54
- Mechanical impact protection: IK08 / IK10
- Form of separation up to Form 4b (in combination with Profi+ installation system)
- Protective earthing (protection class I)
- Seismic characteristics: IEC/EN 60068-3-3: ground acceleration level AG2 and AG5
- Rated current [Ie] up to 630 A depending on main incomer and used busbar-system
- Rated conditional short-circuit current [Icc] up to 25/50 kA depending on incoming circuit-breaker and type of cabinet
- Available in grey RAL 7035 and white RAL 9016
- Material of enclosure: Standard sheet-metal (phosphatized and polyester powder-coated)
- Galvanized parts mainly for interior finish without powder-coating
- Dimensions:
- Height: 460-2060 mm
- Width: 350-1350 mm
- Depth: 180-400 mm
Benefits:
- Wide product range for different kind of applications
- Tailored pre-assembled and partially pre-wired solutions acc. to local market requirements available off the shelf
- Very robust enclosure platform, supporting different installation habits which enables high functionality and good performance also in harsh environment
- Integrated interior structure for the entire product basket reduces the number of individual parts per assembly
- High quality throughout the whole assortment based on 3rd party witnessed certificates and verifications

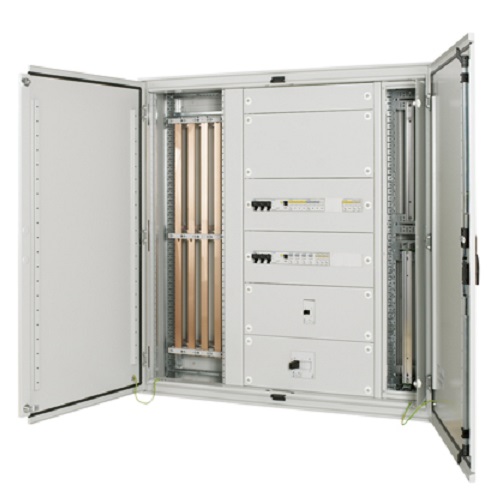

Wall-mounted and floor-standing enclosures for electrical distribution up to 630 A
Thanks to its certification as low-voltage distribution board intended to be operated by ordinary persons according to IEC/EN 61439-1/3 as well as to IEC/EN 62208.
Modular installation system EP
Standardized fitting-system arranged individually to fulfill customer needs. Thanks to its flexible and easy-to-mount design it’s efficient in planning and project execution phase. Furthermore EP provides increased safety due to fully insulated operator level.
Wall-mounted and floor-standing enclosures for electrical distribution up to 630 A
Thanks to its certification as low-voltage distribution board intended to be operated by ordinary persons according to IEC/EN 61439-1/3 as well as to IEC/EN 62208.
Modular installation system EP
Standardized fitting-system arranged individually to fulfill customer needs. Thanks to its flexible and easy-to-mount design it’s efficient in planning and project execution phase. Furthermore EP provides increased safety due to fully insulated operator level.
