Product overview enclosures/cabinets for EP

BP-O (IP31, IK08)
- Surface-mounted, RAL 9016, F3A flange cut-outs, 12 different types
- 1-point locking mechanism with plastic cam lock

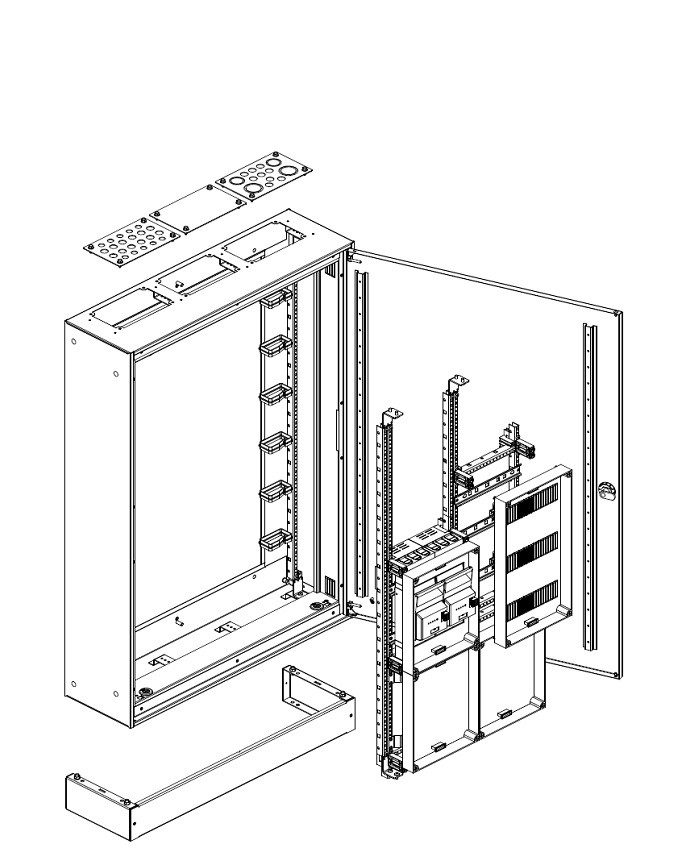

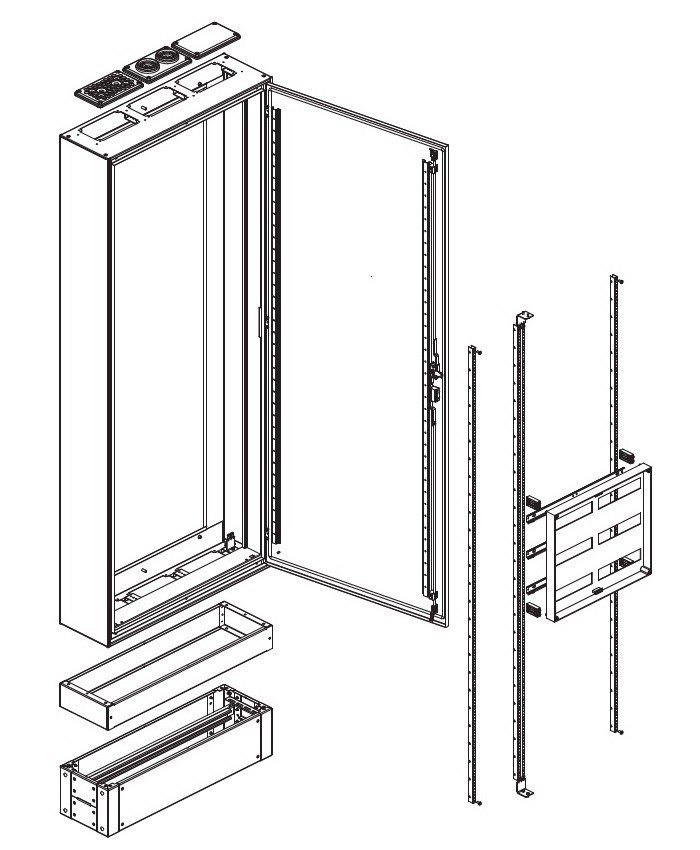

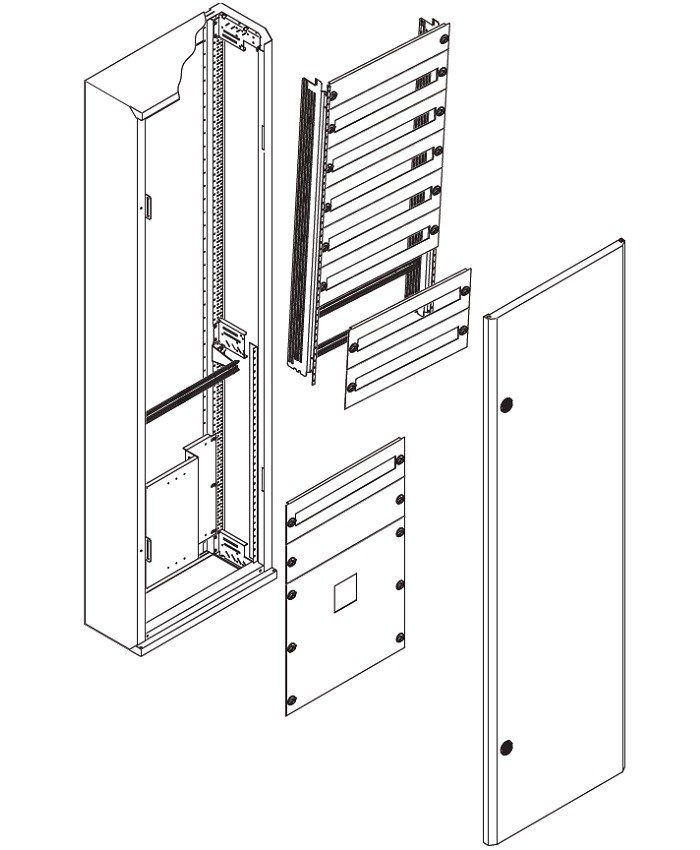

BPM-F (IP55, IK10)
- Floor-standing, RAL7035, F3A flange cut-outs top/bottom, depth 250/400 mm
- 3-point locking mechanism with rotary lever (↑ Icc rating)

BPM-F (IP55, IK10)
- Floor-standing, RAL7035, F3A flange cut-outs top/bottom, depth 250/400 mm
- 3-point locking mechanism with rotary lever (↑ Icc rating)

Highlights from the latest product update
- Floor-standing cabinet BPM-F available as 400 mm deep version for side-by-side arrangement
- Aligned layout to fit for EP modules based on 185 mm busbar system
- Adaptation of the DIN-rail profile 35×15 mm type EPTS15 in accordance with IEC 60715:2017 Ed.2.0
- All internal profiles used in EP like EPTV, EPTH, EPTS are equipped with square perforation 9.5×9.5 mm for cable routing purpose
- Add-on boxes from Ci-assortment especially to terminate bigger incoming cables outside of the cabinet (space saving solution)
Product overview enclosures/cabinets for Profi+

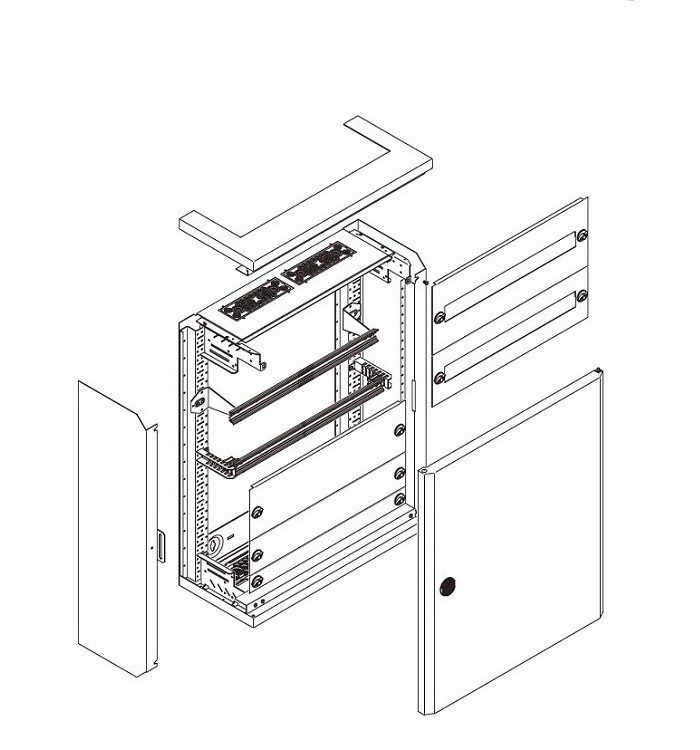

BP-O (IP30, IP31, IK08)
- Surface-mounted, RAL7035 / RAL9016, different cable entry options, flat-pack delivery possible
- 1-point locking mechanism with plastic cam lock / rotary lever

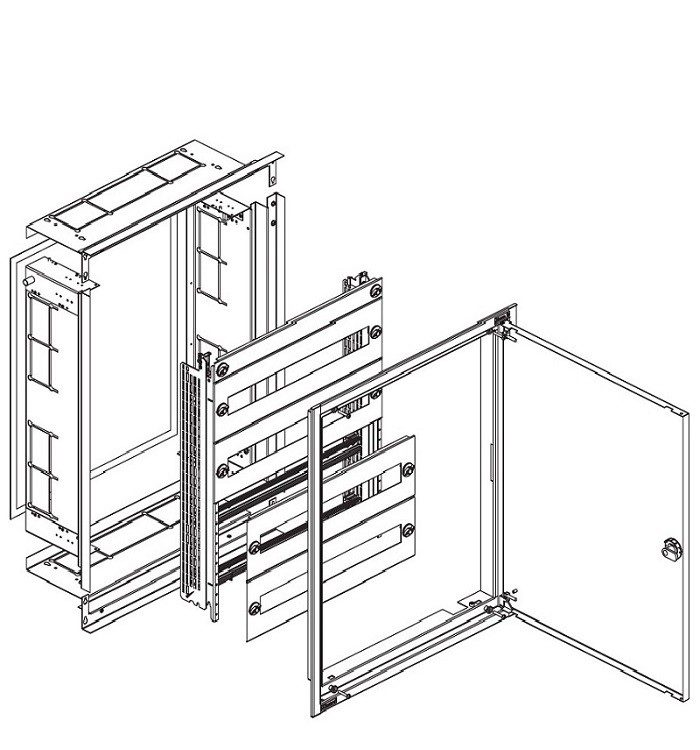

BP-U (IP30, IP43, IP54, IK08)
- Flush-mounted, RAL7035 / RAL9016, wall-box with perforations, depth 180/240 mm, flat-pack delivery possible, outdoor use
- Different locking mechanism depending on type of application

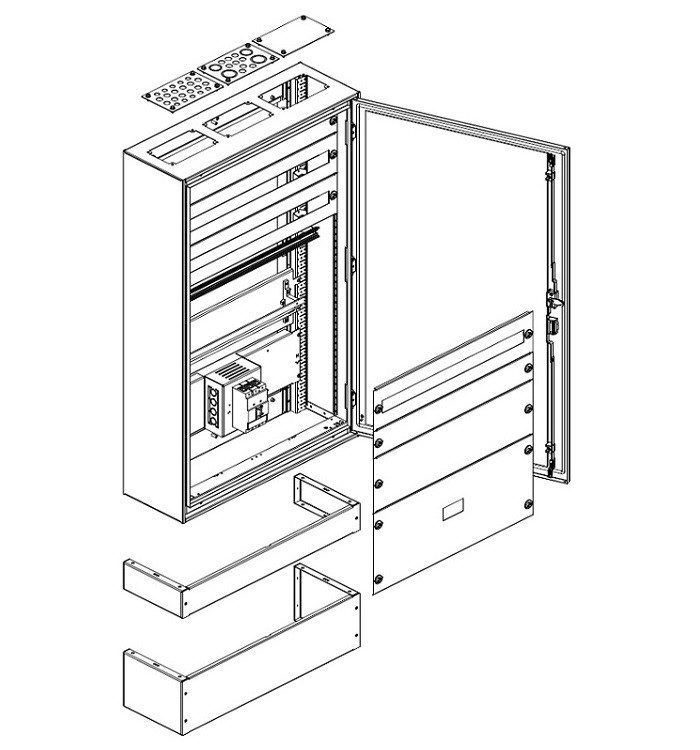

BPM-O (IP55, IK10)
- Surface-mounted, RAL7035 / RAL9016, F3A flange cut-outs
- 3-point locking mechanism with rotary lever (↑ Icc rating)

BP-VF (IP43, IK10)
- Outdoor distribution board for stand-alone applications, RAL 7035, depth between 180 and 320 mm based on standard polyester base A-KU
- 3-point locking mechanism with rotary lever (↑ Icc rating)

BP-F (IP30, IP31, IK08)
- Floor-standing, RAL7035 / RAL9016, F3A flange cut-outs top/bottom, cabinet depths between 250 and 400 mm
- 3-point locking mechanism with rotary lever (↑ Icc rating)

BPM-F (IP55, IK10)
- Floor-standing, RAL7035 / RAL9016, F3A flange cut-outs top/bottom, cabinet depths between 320 and 400 mm
- 3-point locking mechanism with rotary lever (↑ Icc rating)

Product improvements
- Changed setup of double-wing doors for all IP55 enclosures (can be ordered separately, left/right)
- IP31-upgrade for BP-O / BP-F available
- Floor-standing cabinet BPM-F available as 400 mm deep version for side-by-side arrangement
- Integration of new Power Defense (MCCB) series
- NZM-PXR-Integration / mounting kits with cut-out
